Laservision Laser Safety Goggles for High Power LD, DPSS and Ti:Sa-Lasers
In stock
Login and get approved to see your personal prices.
As low as €634.00
excl. vat

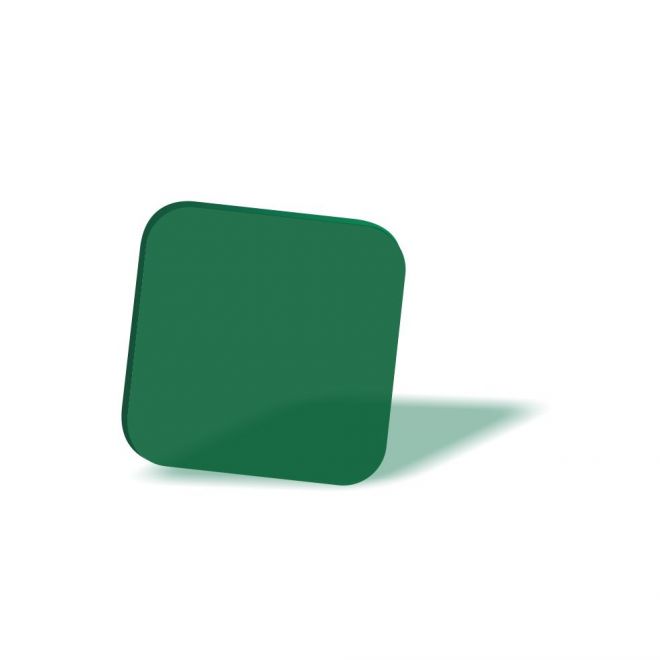

Mineral glass filter with approx. 32% VLT.
T1Q02
- Green absorbing mineral glass filter without additional coating.
- VLT (Visible Light Transmission) of approx. 32% with good colour recognition.
- Laser protection in the wavelength range between 620 and 1320 nm.
- Alignment protection at 633 nm.
- Certified with M-protection levels for ultra-short pulse lasers in the wavelength range between 620 and 1580 nm.
- Application: High Power LD, DPSS and Ti:Sa-Laser
- Available in various frames.
| Wavelength (nm) | (OD) | Operating mode / Tested protection level |
| 620 - <680 | (OD2+) | DIRM LB2 |
| 630 - 635 | (OD3-4) | 1W 2x10E-4J RB3 |
| 680 - <690 | (OD6+) | DM LB5 + IR LB6 |
| 690 - 755 | (OD8+) | D LB7 + IRM LB8 |
| >755 - 795 | (OD8+) | DIR LB7 + M LB8 |
| >795 - 1064 | (OD9+) | DIR LB7 + M LB9 |
| >1064 - 1320 | (OD7+) | DIR LB7 + M LB5 |
| >1320 - 1400 | (OD5+) | DIRM LB5 |
| >1400 - 1580 | (OD3+) | D LB3 + IR LB2 + M LB1 |
Not clear which laser safety filter is required for your protection level? Call us, we are happy to help.
