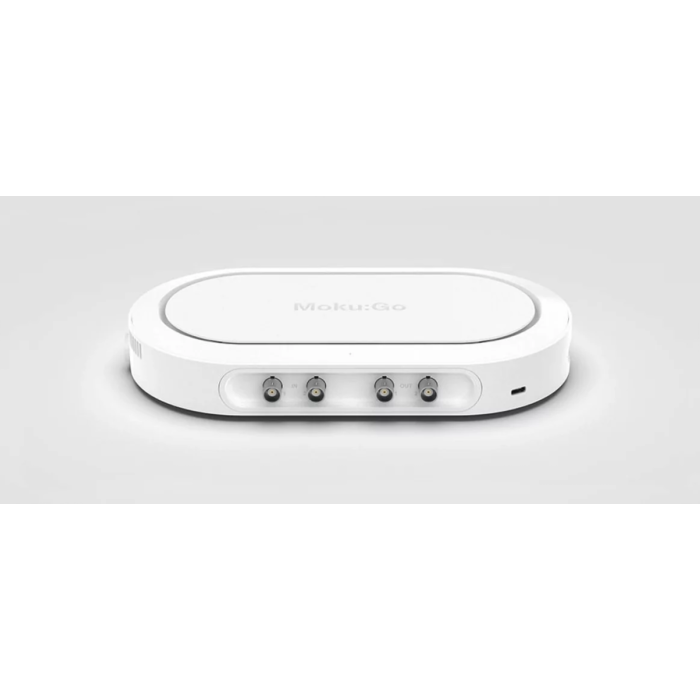

Liquid Instruments Moku:Go
In stock
- SKU
- Moku:Go
- save
Description / Liquid Instruments Moku:Go
Comparison model
| Model | M0 | M1 | M2 |
| Programmable Power Supply |
N/A |
Two-channel (back): Channel 1: Voltage -5 V to +5 V, Current 0 to 150 mA
Channel 2: Voltage 0 to +16 V, Current 0 to 150 mA |
Four-channel (back): Channel 1: Voltage -5 V to +5 V, Current 0 to 150 mA
Channel 2: Voltage 0 to +16 V, Current 0 to 150 mA
Channels 3 & 4: Voltage 0,6 V to +5 V, Current 0,06 to 1 A
|
| Included |
All 8 instruments 2 BNC oscilloscope probes DIO cabling Power adapter USB-C cable |
All 8 instruments 2 BNC oscilloscope probes DIO cabling Power adapter USB-C cable 3x power supply cables |
All 8 instruments 2 BNC oscilloscope probes DIO cabling Power adapter USB-C cable 6x power supply cables Ethernet cable |
| Ethernet |
Wifi |
Wifi |
Ethernet cable Wifi |
| Dimensions |
24 x 13 x 3.8 cm / 9.4 x 5.1 x 3.8 inch (LxWxH) |
24 x 13 x 3.8 cm / 9.4 x 5.1 x 3.8 inch (LxWxH) |
24 x 13 x 3.8 cm / 9.4 x 5.1 x 3.8 inch (LxWxH) |
| Weight | 1.7 lb / 750 g | 1.7 lb / 750 g | 1.7 lb / 750 g |
Technical specifications
Analog I/O
Analog inputs
- Channels: 2
- Bandwidth: 30 MHz
- Sampling rate: 125 MS/s per channel
- Resolution: 12-bit
- Input range: Up to ± 25 V
- Input impedance: 1 MΩ
- Input coupling: AC / DC
Analog outputs
- Channels: 2
- Bandwidth: 20 MHz
- Sampling rate: 125 MSa/s per channel
- Resolution: 12-bit
- Output range: Up to ± 5 V
Digital I/O
I/O
- Channels: 16
- Sampling rate: 62.5 MSa/s per channel
- Logic level support: 3.3 V (5 V tolerant)
Instruments
- Arbitrary Waveform Generator
- Data logger
- Frequency Response Analyzer
- Logic Analyzer / Pattern Generator
- Oscilloscope / Voltmeter
- PID controller
- Spectrum Analyzer
- Waveform Generator
Programming Environment
- Python: API support
- MATLAB: API support + Live Scripting
- Windows: Standalone App
- MacOS: Standalone App
Additional Ports
- USB-C Port: 1
- Magnetic Power Port: 1
- Ethernet Port: Only available on M2 Model
Accessories
- DIO Cable Assembly: 1x
- BNC Oscilloscope probes: 2x
- Power Supply Cables: N/A for M0 Model, 3x for M1 Model, or 6x for M2 Model
- Magnetic Power Cord: 1x
- Ethernet Cable: 1x for M2 Model
Read more about Liquid Instruments.
Do you have any questions about the Moku:Go? Call us, we are happy to help.
